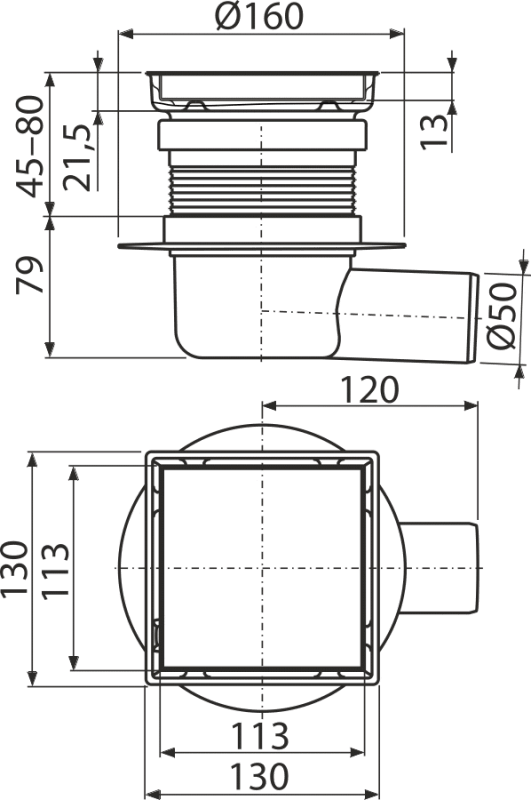

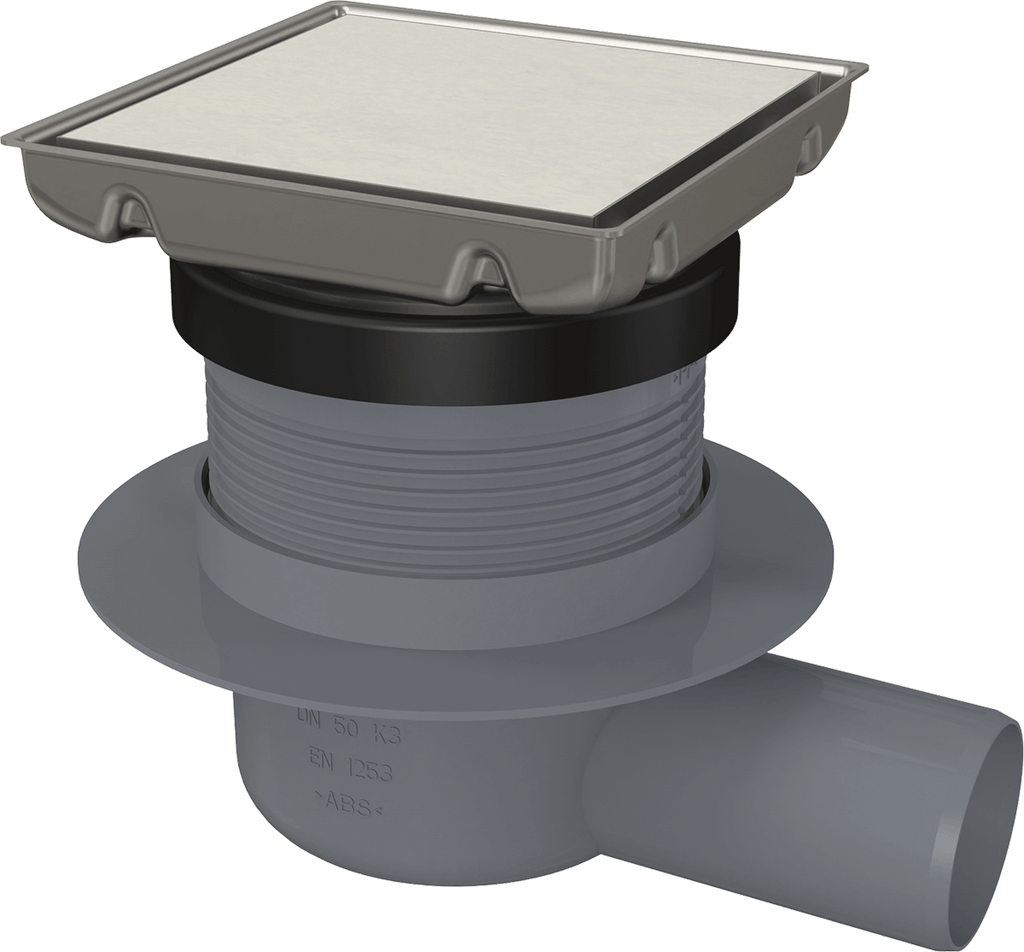

FLOOR DRAIN 130×130 MM SIDE OUTLET
€32,80
Sale price
€32,80
Regular price
€41,00
Skip to product information
In stock
FLOOR DRAIN 130×130 MM SIDE OUTLET
Item Code: 49540223
€32,80
Sale price
€32,80
Regular price
€41,00
Taxes included.
Estimated Delivery
Get it by
26/06/2026 - 30/06/2026
- For the interior, where will be frequent use associated with the regular water runoff into the floor drain (bathrooms)
- Side connection to waste Ø50 mm
- Mechanically cleanable trap up to the waste pipe
- Material of floor drain: stainless steel AISI 304, DIN 1.4301, DIN 17240
- Installation with tile or without
| Flow rate | 48 l/min |
| Odour trap | 50 mm |
| Resistance of odour trap against the pressure | 540 Pa |
| Load class K3 | 300 kg |
| Waste pipe diameter | 50 mm |
| Total installation height | 108 – 162 mm |
